Caracteristici
Surge protection	Yes
Surge energy rating	441 J
UPS topology	Line-Interactive
Noise level	45 dB
Audible alarm(s)	Yes
Output power capacity	1.5 kVA
Input frequency	50/60 Hz
Output power	865 W
Input operation voltage (max)	300 V
Input operation voltage (min)	156 V
Efficiency	98.9 %
Waveform	Sine
Audible alarm modes	Low battery alarm,Overload alarm
Crest factor	3:1
Automatic Voltage Regulation (AVR)	Yes
Surge protection features	Digital Subscriber Line (DSL),Fax,Modem,Network,Telephone
Output frequency regulation	50/60 Hz
Hold time (max)	12 ms
Hold time (min)	10 ms

Conexiune

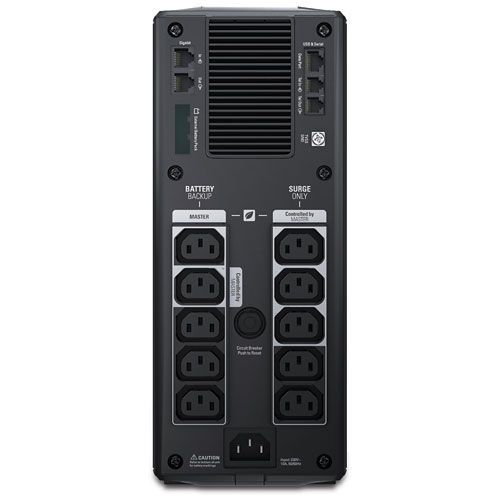

AC outlets quantity 10 AC outlet(s) AC outlet types C13 coupler Power plug C14 coupler USB port Yes Number of output IEC jumpers 2

Baterie

Battery technology Sealed Lead Acid (VRLA) Hot-swap battery Yes Battery capacity 187 VAh Battery recharge time 8 h Typical backup time at half load 12.4 min Battery life (max) 5 year(s) Automatic battery test Yes Typical backup time at full load 3.7 min Cold start Yes Replacement battery cartridge APCRBC124

Design

Product colour Black Certification A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS Display type LCD

Conditii de mediu

Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 0 - 95 % Storage temperature (T-T) -15 - 40 °C Storage relative humidity (H-H) 0 - 95 % Operating altitude 0 - 9000 m Non-operating altitude 0 - 15000 m

Detalii tehnice

Sustainability certificates RoHS,ENERGY STAR

Greutate şi dimensiuni

Weight 12700 g Width 112 mm Depth 380 mm Height 301 mm Package weight 14300 g Package width 238 mm Package depth 488 mm Package height 387 mm

Datele de ambalare

Cables included Phone (RJ-11),USB cable Manual Yes Bundled software PowerChute Personal Edition Software CD Yes Warranty card Yes

Date logistice

Products per pallet 20 pc(s) Products per master (outer) case 1 pc(s) Harmonized System (HS) code 85078000

Alte caracteristici

Nominal input voltage 230 V Nominal output voltage 230 V
