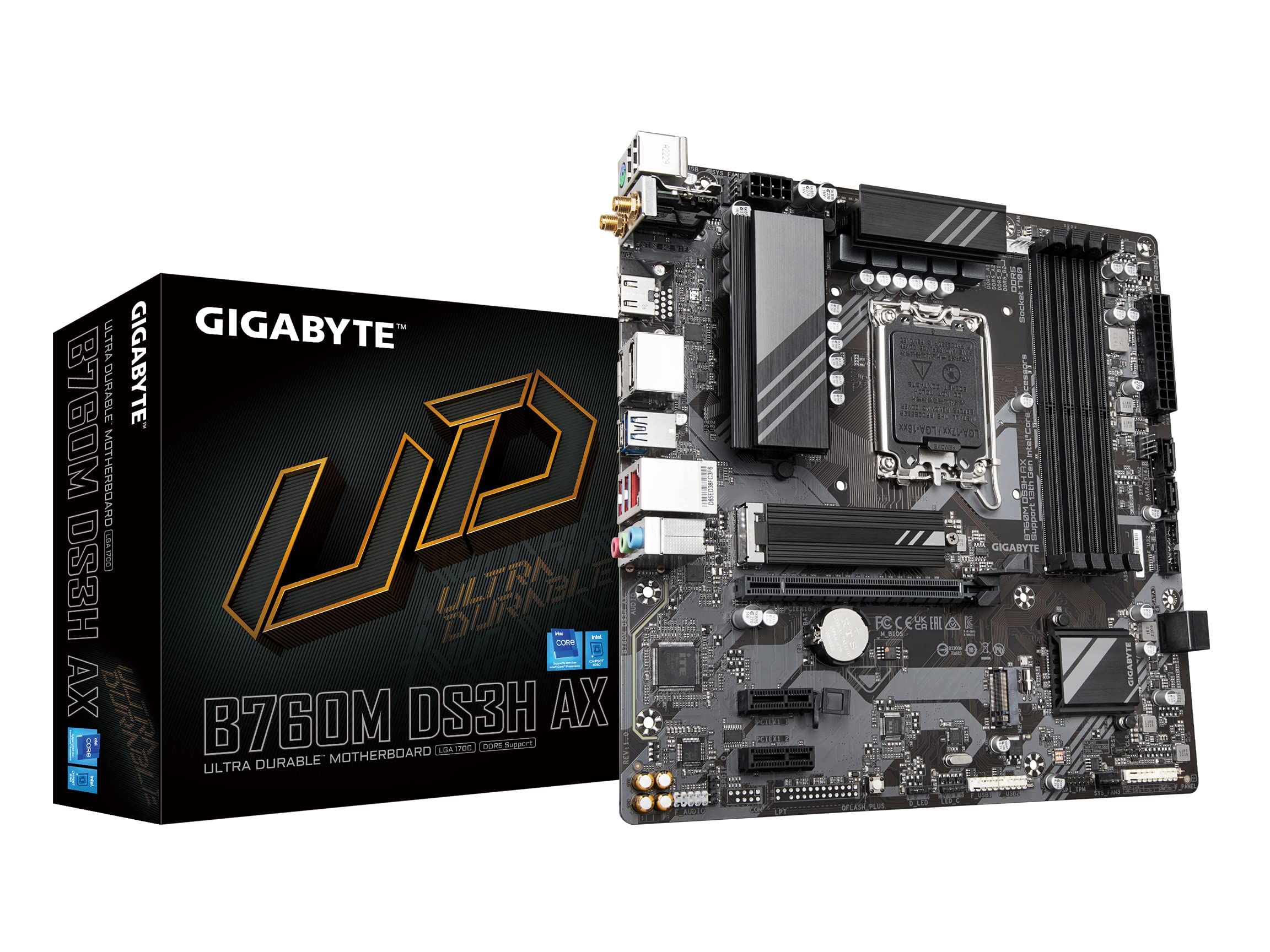

Placa de baza GIGABYTE

Placa de baza GIGABYTE B760M DS3H AX, socket 1700, 4x DDR5 UDIMM, 4x SATA, 2x NVMe, 11x USB-A, 1x USB-C, mATX

Referintă: 258571
SKU: B760M DS3H AX
Compară:
Branduri de top din categoria Placi de baza:

Placa de baza GIGABYTE B760M DS3H AX, socket 1700, 4x DDR5 UDIMM, 4x SATA, 2x NVMe, 11x USB-A, 1x USB-C, mATX

Preț standard

559 72 lei
Pret fara TVA

677.26lei
Pret brut

Preț B2B

559 72 lei 110.74€
Pret fara TVA

677 26 lei 133.99€
Pret brut

Înregistrează companie

Actualizat acum 51 minute

În stoc  (10)
Disponibil imediat


Cere detalii
Te notificam imediat ce articolul va fi publicat!


Garanție:  36 luni
Comercializat din 22/06/2023
Ridică din Alege Easybox
Transport Gratuit
în cazul produselor cu o greutate mai mare de 30kg, se pot adăuga taxe de expeditie, comunicate ulterior de catre un operator
Toate prețurile includ TVA

Descriere Scurtă

Placa de baza GIGABYTE B760M DS3H AX (rev;1.x) LGA1700
4x DDR5
1x PCIE x16
2x PCIE x1
2x M.2
1x HDMI 2X DP
4x SATA 6GB/s
mATX
mai mult

Compară
MODEL
ProducatorGIGABYTE
ModelB760M DS3H AX
Socket1700
FormatmATX
CHIPSET
Producator chipsetIntel
Model chipsetB760
Procesoare suportateIntel Gen 12, Gen 13, Gen 14
Versiune PCI Express4.0
RAID0, 1, 5, 10
Video integratNecesita procesor cu grafica integrata
Audio integratRealtek
Chipset LANRealtek
Viteza LAN2.5 Gbps
Chipset Wi-FiWi-Fi 6E
Standard Wi-Fi802.11 a/b/g/n/ac/ax
Standard Bluetooth5.3
MEMORIE
TipDDR5
Sloturi4
Capacitate maxima192 GB
Frecventa maxima4800 MHz
Frecventa maxima OC7600 MHz
Tip DIMMUDIMM
Suport ECCDa
CONECTORI INTERNI
Alimentare ATX1x 24-pin
Alimentare CPU1x 8-pin
Conectori ventilator4
Conectori RGB2
SATA 34
M.2 22802
PCIe x12
PCIe x161
USB 2.04
USB 3.02
TPM1
CONECTORI SPATE
PS/21
USB 2.02
USB 3.03
USB Type-C1
RJ-451
Antena Wi-Fi2
HDMI1
DisplayPort2
Jack Audio3

Opțiuni :

Alege una dintre optiunile compatibile si beneficiezi de montajul si testarea gratuita
Procesoare
207 opțiuni disponibile
mai multe opțiuni
Memorii desktop
642 opțiuni disponibile
mai multe opțiuni

Descriere
Processor
Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socketLGA 1700
Supported processor socketsLGA 1700
Memory
Memory slots typeDIMM
Maximum internal memory128 GB
ECCY
Number of memory slots4
Non-ECCY
Supported memory clock speed (max)7600 MHz
Supported memory clock speeds7600. 7400. 7200. 7000. 6800. 6600. 6400. 6200. 6000. 5800. 5600. 5400. 5200. 4800. 4000 MHz
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Unbuffered memoryY
Network
Ethernet LANY
Bluetooth5.2 Y
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller modelRZ608
Wi-FiY
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet interface2.5 Gigabit Ethernet
Technical details
VendorGigabyte
Packaging content
Cables includedSATA
Bundled softwareNorton Internet Security
Expansion slots
Number of M.2 (M) slots2
PCI Express x16 slots1
PCI Express x1 slots2
BIOS
BIOS memory size128 Mbit
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
ACPI version5.0
Clear CMOS jumperY
Weight & dimensions
Width244 mm
Depth244 mm
Graphics
Maximum resolution4096 x 2304 pixels
Parallel processing technology supportNot supported
HDCPY
Features
Motherboard form factormicro ATX
Audio output channels7.1 channels
Motherboard chipsetIntel B760 Express
PC health monitoringFan, Temperature, Voltage, Water cooling
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Motherboard chipset familyIntel
Component forPC
Internal I/O
Front panel connectorY
12V power connectorY
USB 2.0 connectors2
S (B 2.0 connectors - PDIF out connector - S power connector (8-pin) - B 3.2 Gen 1 (3.1 Gen 1) connectors - mber of SATA III connectors)2 - Y - Y - 1 - 4
CPU fan connectorY
ATX Power connector (24-pin)Y
Front panel audio connectorY
TPM connectorY
RGB LED pin headerY
EPS power connector (8-pin)Y
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Rear panel I/O ports
DisplayPort version1.2
PS (2 ports quantity)1
USB connector typeUSB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
Headphone outputs3
Microphone inY
WiFi-AP antenna jack2
HDMI ports quantity1
HDMI version2.0
DisplayPorts quantity2
Storage controllers
RAID levels0, 1, 5, 10
Supported storage drive typesHDD & SSD
Storage interfacesM.2, PCI Express 4.0, SATA III
RAID supportY
Number of storage drives supported6



mai mult

4.6/5 62 reviews

Produsul este nou si comercializat in ambalajul original al producatorului.
